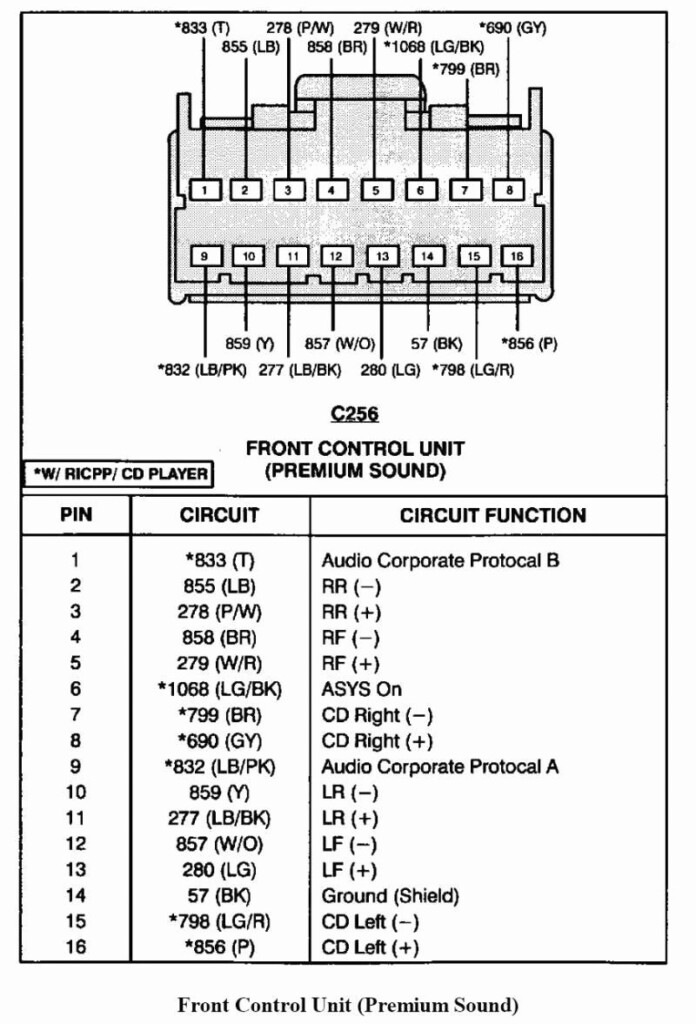

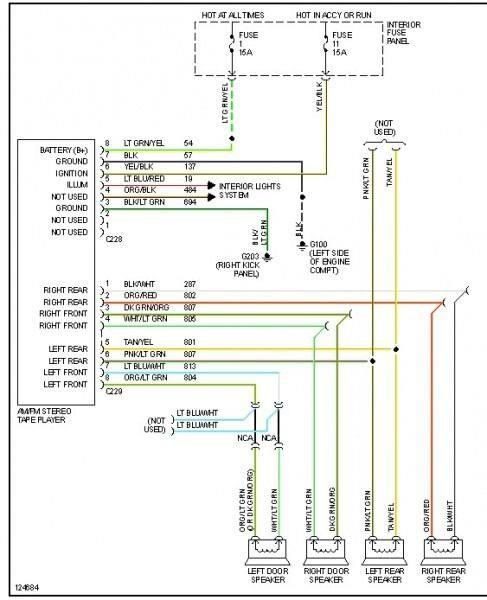

2000 Ford Explorer Car Stereo Radio Wiring Diagram – To make certain that the wires is carried out properly while the installation of a whole new radio station in your Ford, you’ll need a Ford Radio station Wires Diagram. It could be tough to find out which cables go how and where in order to connect them to the correct connectors sometimes. It can save you effort and time, along with dollars, through the use of electrical wiring diagrams.
B Wire
Check the wiring first if you’re having difficulties getting the radio in your car to function. If your automobile has a factory stereo that was pre-wired, the wiring harness that links the radio to the electrical system and speakers is constructed of plastic.
You must be aware of the right coloration to use for virtually any additional fm radio cabling included in some designs. The cable with dark lines, as an illustration, will go to the front lecturer in the correct aspect of your automobile. If your front speakers are on the left, you’ll need to use a separate wire, however.
the location where the B wire is
By recognizing the B wire, which is the positive terminal of the battery, you can better grasp the Ford radio wiring. Once the automobile begins, the 12 volts within this cable start up the generator. The steering-tire controls and radios are linked to the other two wires, “crucial 1” and “essential 2,” correspondingly. When the steering-tire control cable should be key2, key1 and replaced must be linked to the suitable terminals. Furthermore, the option gentle around the controls is managed via the “Illum” cable tv.
The Ford F-150’s wiring is less difficult in comparison to the cabling in more aged models. Even if some wire connections are the same, being aware of your product season can make it straightforward to identify the best one. Once straightforward the radio wiring in Ford F150s was. However, the wiring was altered in the middle of the generation.
Positive stop from the B wire
You might want to examine the wiring if your Ford radio isn’t working. The speakers and electric system in the car are coupled to the fm radio by the wires utilize. The plastic-type harness’s purpose is so it will be straightforward that you should affix the fm radio on the necessary components. The schematic also identifies every single wire’s position and use.
The energy source of the radio is connected to the Beneficial terminal of B . You could possibly easily turn off the ability for this wire even though the vehicle remains moving. The tachometer is mounted on this wire’s unfavorable terminal. The radio’s rear can access it.
How you can splice in the proper cable
If you’re changing the radio, it’s crucial to have the right wire to splice into your Ford Ranger’s wiring diagram. You’ll require to pay attention to each and every wire’s purpose and the ways to hook up them. The radio’s wiring diagram can provide you with this information.
Which wire inside the mp3 control should the remote control be spliced into?
If you want to swap out the factory remote in your Ford, you need to be aware of the proper wire to splice into. In order to avoid any unintentional present attract, the remote control change-on wire has to be spliced in the production line wire. You can find the correct factory wiring, by conducting some investigation. This will promise appropriate installation and guard from troubleshooting errors.
The top model wires utilize is generally in which you’ll get the distant turn on wire. The fuse container must be connected to this low current cord. Also you can hook up your old motor vehicle on the power antenna series. Only while the car is functioning must this cable start up.
